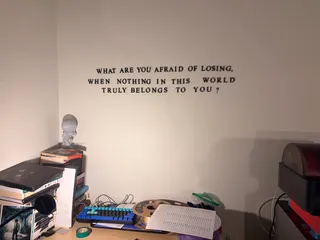

  Lettering Quote

  •
• Aug 2026 – Oct 2026

  Filament Storage System

  Design Process

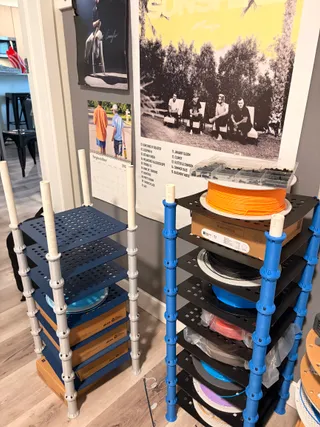

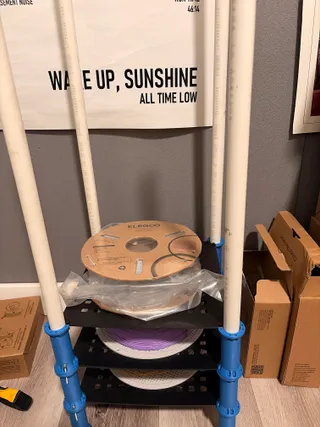

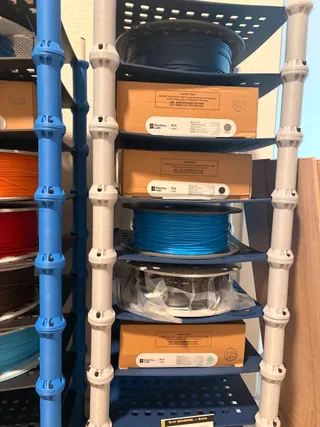

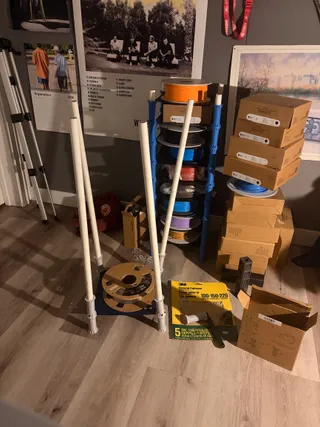

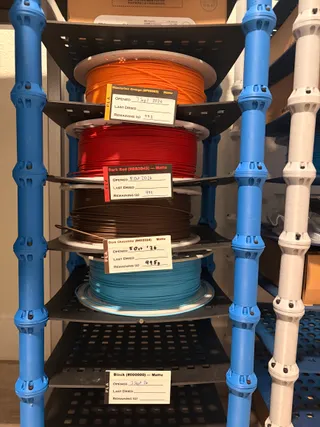

  Since moving into a new apartment, I decided to refill on a large set of 3D printing colors. This, in turn, required a storage system for my filament, was ultimately to be 3D printed. I knew I wanted to use my vertical space in my apartment, since my room walls are 9-10ft high. I purchased some PVC Pipe from Home Depot to proceed in constructing a storage system for all my filament rolls. Each section consists of a flat plate with holes for filament savings connected to 80mm risers for on each corner insulating the PVC pipes.

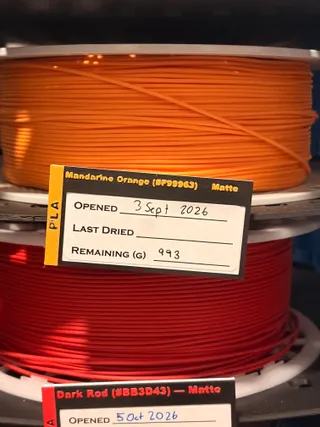

  When the need came along to track when I opened each roll and track their humidity via drying with the Bambu Lab AMS 2 Pro, I needed a system (preferably physical) to track those dates as well as filament weight. I designed a small index-card sized 3d-printed card (parametrically designed in Fusion360) that is printed in multicolor and has space for a custom-made label from a sticker sheet. That way, the labels are magnetically added to the horizontal plates holding up each filament roll.

  Reflection & Improvements

  In writing this and reflecting on this project, there is always improvements to be made; many of these will be a gradual improvement process, however, the initial release of the project is coming to a close for me. Here is a future improvement list

  • The magnetic labels require removal before accessing filament. While this enforces accountability, this is not ideal for quick color swaps.
  • In adding a plethora of screws, the PVC pipes are not really… doing anything. They are statically standing surrounding the 3D-printed risers. The goal originally was for towers to be stabilized by the PVC pipe, however, design issues swayed me away for this. I would like to redesign eventually to stabilize the core.
  • Continuing from the previous bullet, the weight of the filament is causing structural overload to the plates holding the spools. Ideally, this would be resolved via a central pillar that stabilizes the weight (almost all spools have a central bore through them).
  • Labels are not easily reusable. I must either white out or use pencil on them to update drying status or weight.
  •
  •
  •
  •
  •
  •
• Apr 2024 – May 2024

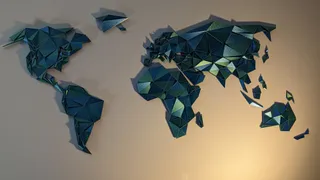

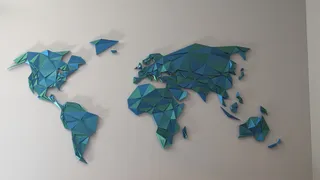

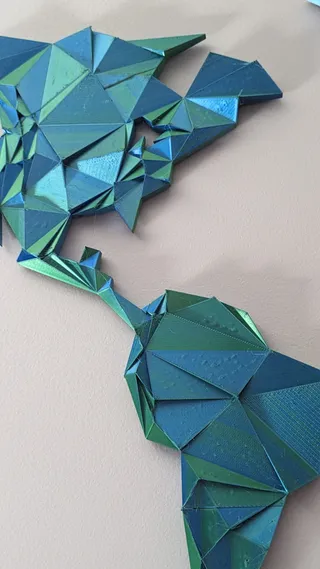

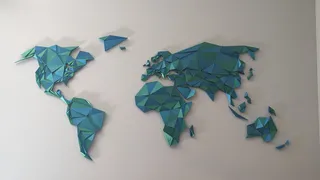

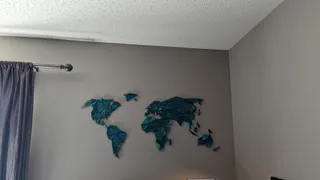

  3D Printed World Map

  Files can be found here

  Gcode modified

  {if plate_name!=""}{plate_name}{else}{input_filename_base}{endif}_{filament_type[initial_tool]}_{printer_model}_{print_time}_{round((total_weight*100.0))/(100.0)}g_${round((total_cost*100.0))/(100.0)}.gcode


  Prusa Mini Non-Cut Parts

  File Name	Time	Filament (meters)	Filament (grams)
  Africa2	4h11m	18.94	56.49
  Asia4	4h37m	19.37	57.78
  Asia Islands 1-4	1h39m	5.35	15.95
  Small Prints	1h45m	4.98	14.85
  NorthPole	1h26m	5.96	17.79
  Australia	3h19m	14.02	41.81
  Asia1	4h31m	21.30	63.71
  Europe	5h6m	18.77	56.00
  TOTAL	26h34m	108.69	324.38

  Prusa Mini Cut Parts

  File Name	Time	Filament (meters)	Filament (grams)
  Africa1A	2h40m	12.00	35.86
  Africa1B	3h32m	15.82	47.25
  Asia2	5h9m	20.69	61.70
  Asia3	6h4m	25.44	75.86
  NA1A	4h8m	17.12	51.05
  NA1B	2h25m	9.81	29.26
  **NA2 **	4h46m	18.41	54.92
  SA1	4h15m	16.51	49.24
  SA2	4h21m	18.04	53.80
  TOTAL	37h20m	153.84	458.94

  Total Statistics and Result

  -	Time	Filament (meters)	Filament (grams)
  TOTAL	63h54m	262.53	783.32

  See also: https://www.printables.com/model/824371-low-poly-world-map-1-meter-version/comments/1781329

  •
  •
  •
  •
  •
  •
